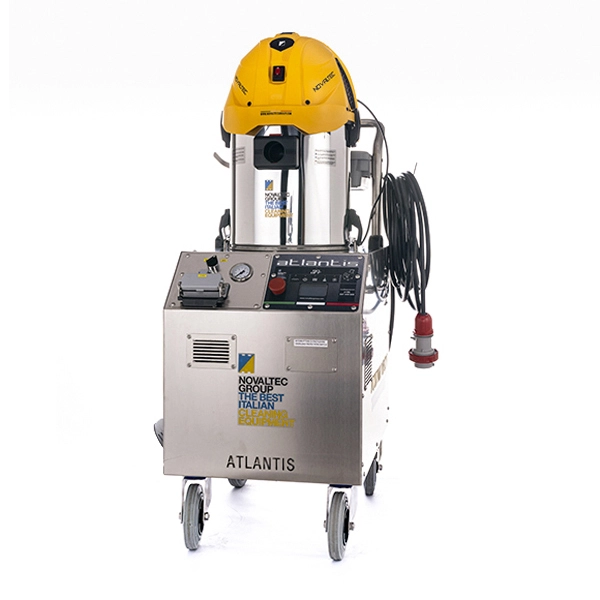

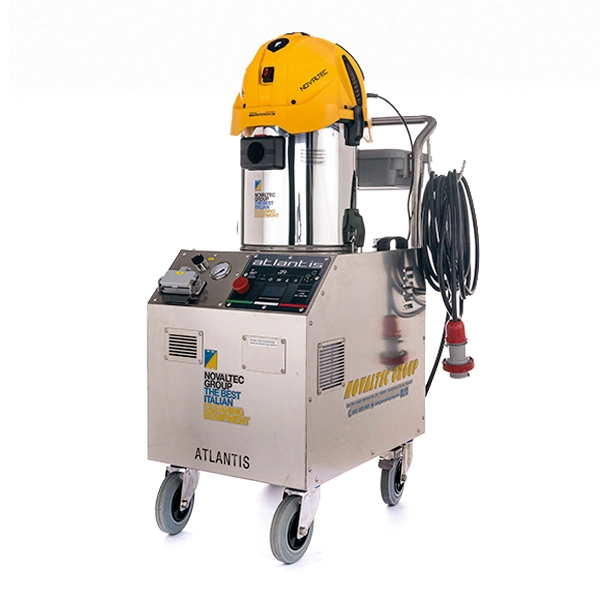

The industrial steam line Atlantis Standard has the same features as the smaller line (Atlantis Compact) but differs in the size of the body and the volume of the 29 litre water tank and the 8.5 litre detergent tank. Both models, Atlantis Standard 7.5 and 9.5, have boiling water and detergent/disinfectant supplying as standard and can be supplemented with a vacuum system using the HEPA H13 filter; thanks to the suction power, you can wash, degrease and dry in a single go.
Atlantis Standard 7.5 - 9.5 – Technical Data Download 4.00 KB
Atlantis Standard 13 – Technical Data Download 640.58 KB
Unbeatable for any difficult dirt removal job, thanks to the power and quantity of steam supplied. These industrial steam cleaners are perfect for large industrial environments.
The 4.0 technology is a plus that allows the user to check work and maintenance by connecting the machine to the Novaltec Group portal.
| TECHNICAL DATA | ATLANTIS STANDARD 7.5 | ATLANTIS STANDARD 9.5 | ATLANTIS STANDARD 9.5 |
|---|---|---|---|
| Power supply | 400 V - 50/60 Hz | 400 V - 50/60 Hz | 400 V - 50/60 Hz |
| Start-up time | 4 min | 4 min | 4 min |
| Boiler capacity | 5 l | 5 l | 5 l |
| Boiler material | AISI 304 | AISI 304 | AISI 304 |
| Boiler power | 7500 W | 9500 W | 1300 W |
| Steam product quantity | 210 g/min | 245 g/min | 330 g/min |
| Steam output regulation | yes | yes | yes |
| Steam pressure | 8,0 ± 0,3 Bar | 8,0 ± 0,3 Bar | 8,0 ± 0,3 Bar |
| Steam boiler temperature | 180° C | 180° C | 180° C |
| Unlimited autonomy | yes | yes | yes |
| Double safety valve PED 1 | 9,0/9,5 ± 0,3 Bar | 9,0/9,5 ± 0,3 Bar | 9,0/9,5 ± 0,3 Bar |
| Thermostat | 200° C | 200° C | 200° C |
| PCB | 230/12 V | 230/12 V | 230/12 V |
| Control panel voltage | 5 V | 5 V | 5 V |
| Power cable lenght | 10 mt | 10 mt | 10 mt |
| Frame material | stainless steel 18/10 | stainless steel 18/10 | stainless steel 18/10 |
| Standard wheels | Ø 150 mm | Ø 150 mm | Ø 150 mm |
| Dimensions | 710x530x830 mm | 710x530x830 mm | 710x530x830 mm |
| Weight | 50 Kg | 50 Kg | 50 Kg |
| STANDARD SUPPLY | |||
| Hot water output | yes | yes | yes |
| Electronic hot water control | yes | yes | yes |
| Detergent output | yes | yes | yes |
| Detergent output regulation | yes | yes | yes |
| Water tank | 29 l | 29 l | 29 l |
| Detergent tank | 8,5 l | 8,5 l | 8,5 l |
